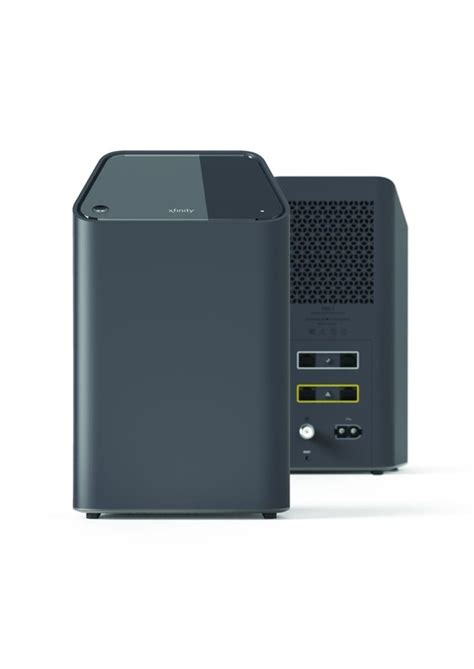

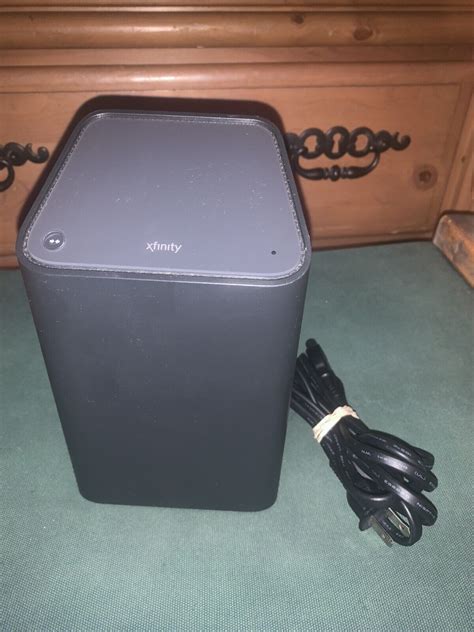

The Xfinity Arris XB6 is a powerhouse gateway device that combines a cable modem, router, and VoIP adapter into one sleek unit. Understanding its internal circuit can help tech enthusiasts and homeowners alike optimize performance and troubleshoot issues effectively. In this deep dive, we’ll explore the key components, functionalities, and tips to maximize your Xfinity Arris XB6 experience.
Key Components of the Xfinity Arris XB6 Internal Circuit
The XB6’s internal circuit is a marvel of engineering, designed to deliver high-speed internet, robust Wi-Fi coverage, and reliable phone services. Here’s a breakdown of its core components:
- Cable Modem: Handles data transmission between your ISP and home network.
- Router: Manages Wi-Fi signals and connects multiple devices.
- MoCA Adapter: Uses coaxial cables for extended network coverage.
- Power Supply Unit: Ensures stable power delivery to all components.
💡 Note: The XB6’s integrated design reduces latency and improves overall performance compared to separate devices.
How the Xfinity Arris XB6 Circuit Works
The XB6’s circuit operates seamlessly to provide a unified networking solution. Here’s a simplified workflow:
- Data Reception: The cable modem receives signals from your ISP via coaxial cables.
- Signal Processing: The router converts these signals into Wi-Fi and Ethernet connections.
- Distribution: Devices connect via Wi-Fi or Ethernet, while MoCA extends coverage using existing coaxial wiring.
| Component | Function |
|---|---|
| Cable Modem | ISP Data Reception |
| Router | Wi-Fi & Ethernet Distribution |
| MoCA Adapter | Coaxial Network Extension |
Optimizing Your Xfinity Arris XB6 Performance
To get the most out of your XB6, consider these tips:
- Central Placement: Position the device centrally to maximize Wi-Fi coverage.
- Firmware Updates: Regularly update firmware for improved performance and security.
- Bandwidth Management: Use the Xfinity app to prioritize devices and manage bandwidth.
Troubleshooting Common Issues
Encountering problems? Here’s how to address them:
- Slow Internet: Check for firmware updates or reset the device.
- Wi-Fi Dead Zones: Use MoCA adapters or Wi-Fi extenders to improve coverage.
- VoIP Issues: Ensure proper phone cable connections and check for service outages.
🔧 Note: Always restart the XB6 before attempting advanced troubleshooting.
The Xfinity Arris XB6 is a versatile gateway that simplifies home networking. By understanding its internal circuit and following optimization tips, you can ensure a seamless and reliable connection. Whether you’re a tech enthusiast or a casual user, the XB6’s integrated design offers convenience and performance in one package.
What is the Xfinity Arris XB6?
+The Xfinity Arris XB6 is a 3-in-1 gateway device combining a cable modem, router, and VoIP adapter.
How do I update the XB6 firmware?
+Access the Xfinity app or web portal to check and install the latest firmware updates.
Can I use Wi-Fi extenders with the XB6?
+Yes, Wi-Fi extenders or MoCA adapters can enhance coverage in larger homes.
